Burners 2 Wok
Rated Power 4.2kW, 4.2kW(LPG)；4.5kW, 4.5kW(LNG)
Pan Support Enamel
Dripper NON
Ignition Type Pulse igniter(DC 1.5V)
Knob Metal
Fire Failure Device With FFD
Dimension 740x430x130(mm)
Cutting Size 625x345(mm)
Packing Size 790x485x210(mm)
Weight 8.0/10.0(kg)
20'/40'/40' HQ 380/740/880pcs
86 760 89823878
Detail

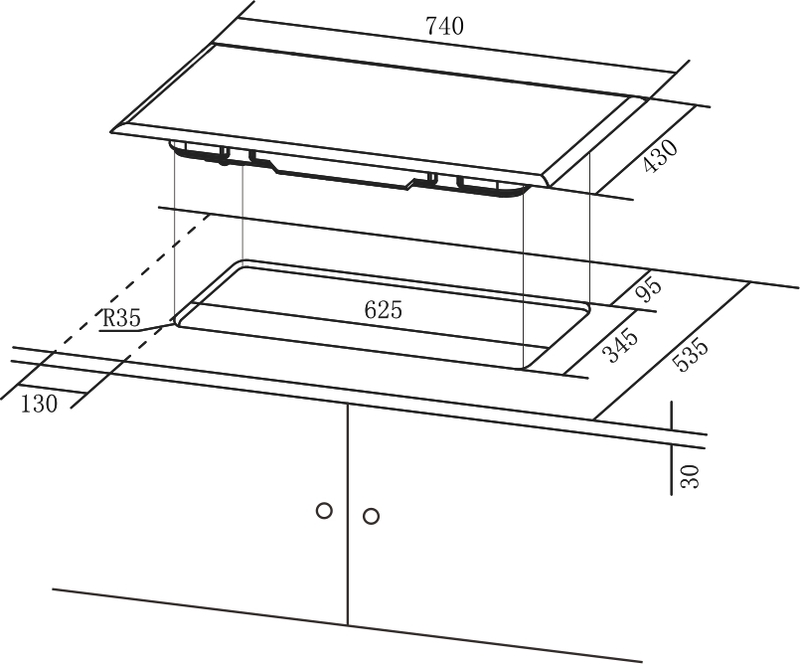

                        INSTALLATION GUIDE


                        HOB

                        SF274K003B

开孔图 265x475.png
